Lintels

Features & Benefits

  • Time saving and effective.
  • Easy to use with two men can handle the job.
  • Block work can be continued without delay.

Installation

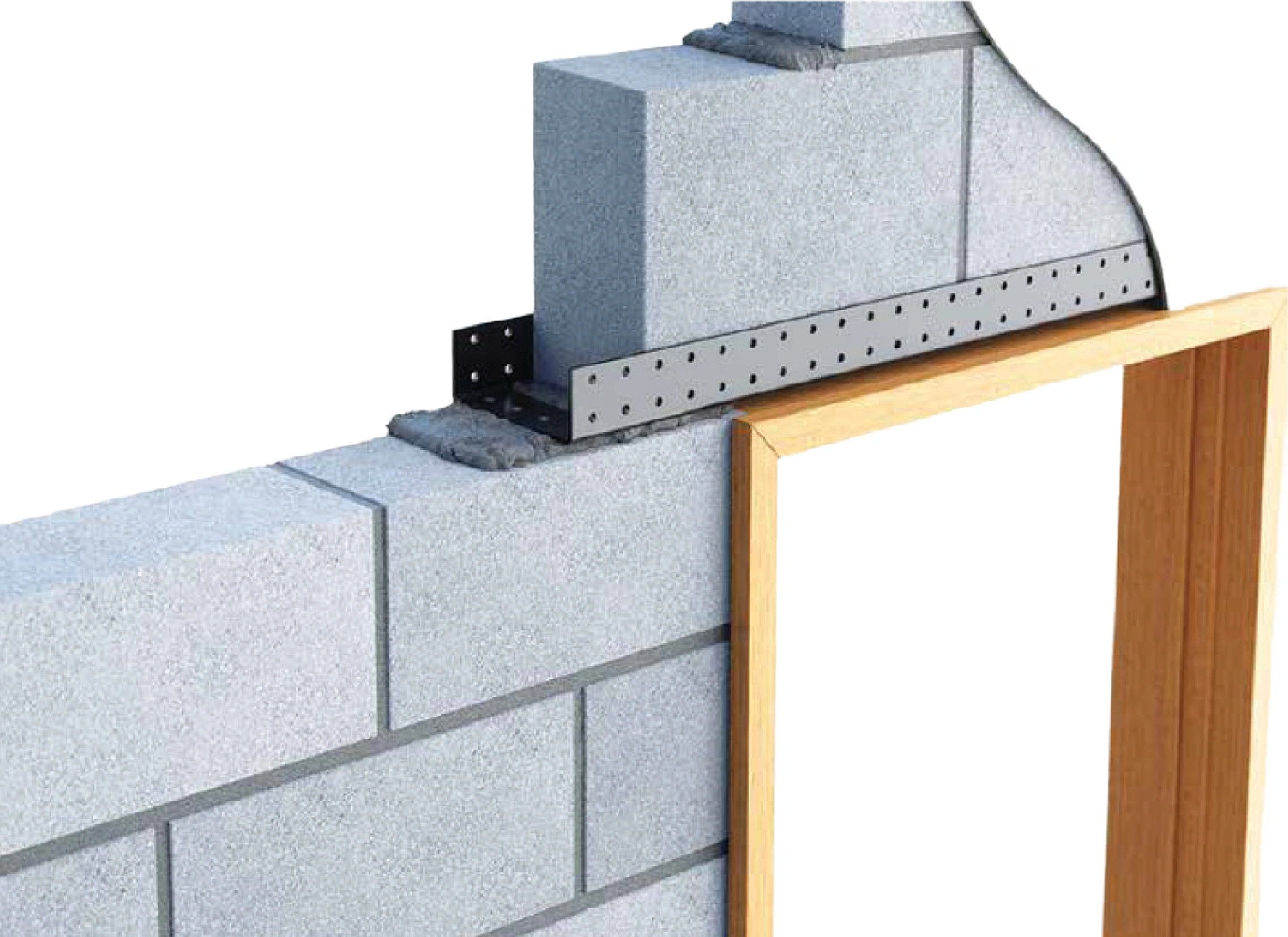

  • Lintels should be installed with a 20cm bearing at each end and should be fully bedded on block work mortar.
  • Lintels cannot be altered from the original manufactured sizes (like cutting or welding).
  • Lintels must be used as per the weight standards (not exceeding actual load bearing capacity).
  • To avoid chance of deflection, support must be provided at the center until mortar is dry.
  • Damaged lintels cannot be used.

*Load calculation can be provided as per client's request for which size and density of block, density of plaster and plaster thickness is required.

Steel Lintel Safe Load Span

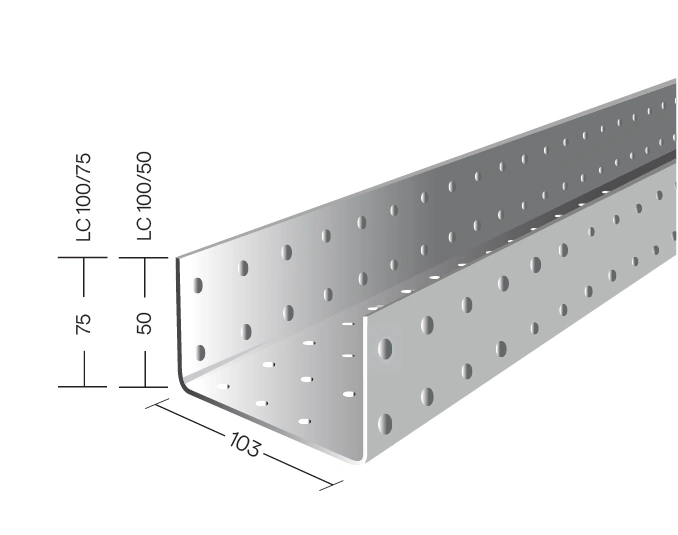

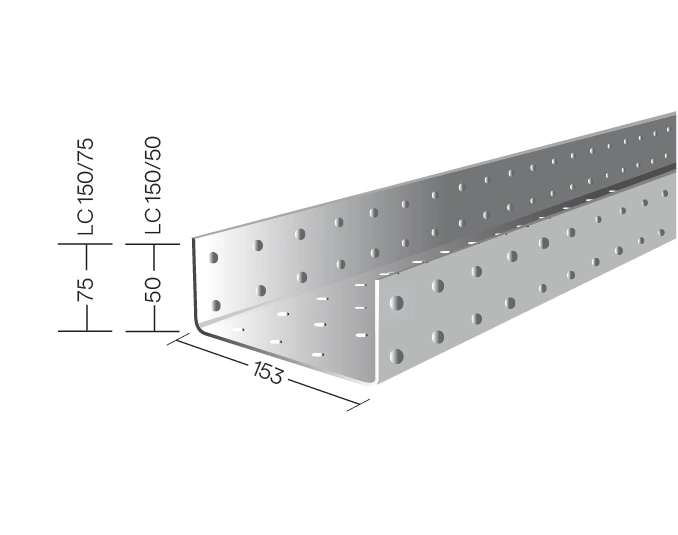

Reference Code Flange Height (mm) Width of Lintel (mm) Thickness/ Gauge(mm) 0.90-1.20 1.0-1.50 1.60-1.80 1.90-2.10 2.20-2.40 2.50-2.60 2.80- 3.00
THE WEIGHTS MENTIONED BELOW ARE IN TONS
  50 100 2.0 0.55 0.42 0.31 - - - -
MLT100A 50 100 2.5 0.80 0.58 0.38 0.24 0.18 0.16 -
  50 100 3.0 1.12 0.66 0.44 0.31 0.25 0.47 0.13
MLT100B 75 100 3.0 1.63 1.25 1.00 0.86 0.64 - 0.38
  50 150 2.0 0.48 0.37 0.27 - - - -
MLT150A 50 150 2.5 0.76 0.58 0.41 0.27 0.19 - -
  50 150 3.0 1.22 0.79 0.52 0.37 0.28 - -
MLT150B 75 150 3.0 1.63 1.25 1.00 0.86 0.64 - -
  50 200 2.0 0.62 0.48 0.35 - - - -
MLT200A 50 200 2.5 0.77 0.59 0.41 0.29 0.21 - 0.21
  50 200 3.0 1.05 0.80 0.53 0.38 0.28 - 0.28
MLT200B 75 200 3.0 1.63 1.25 1.00 0.86 0.64 0.47 0.37
  50 250 2.0 0.62 0.48 0.35 - - - -
MLT250A     2.5 0.77 0.59 0.41 0.29 0.21 - 0.21
      3.0 1.05 0.89 0.53 0.38 0.28 0.19 0.28

*Special lengths available upon request.

*

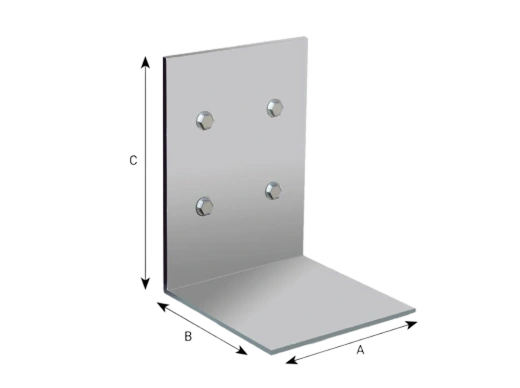

Lintel Brackets
