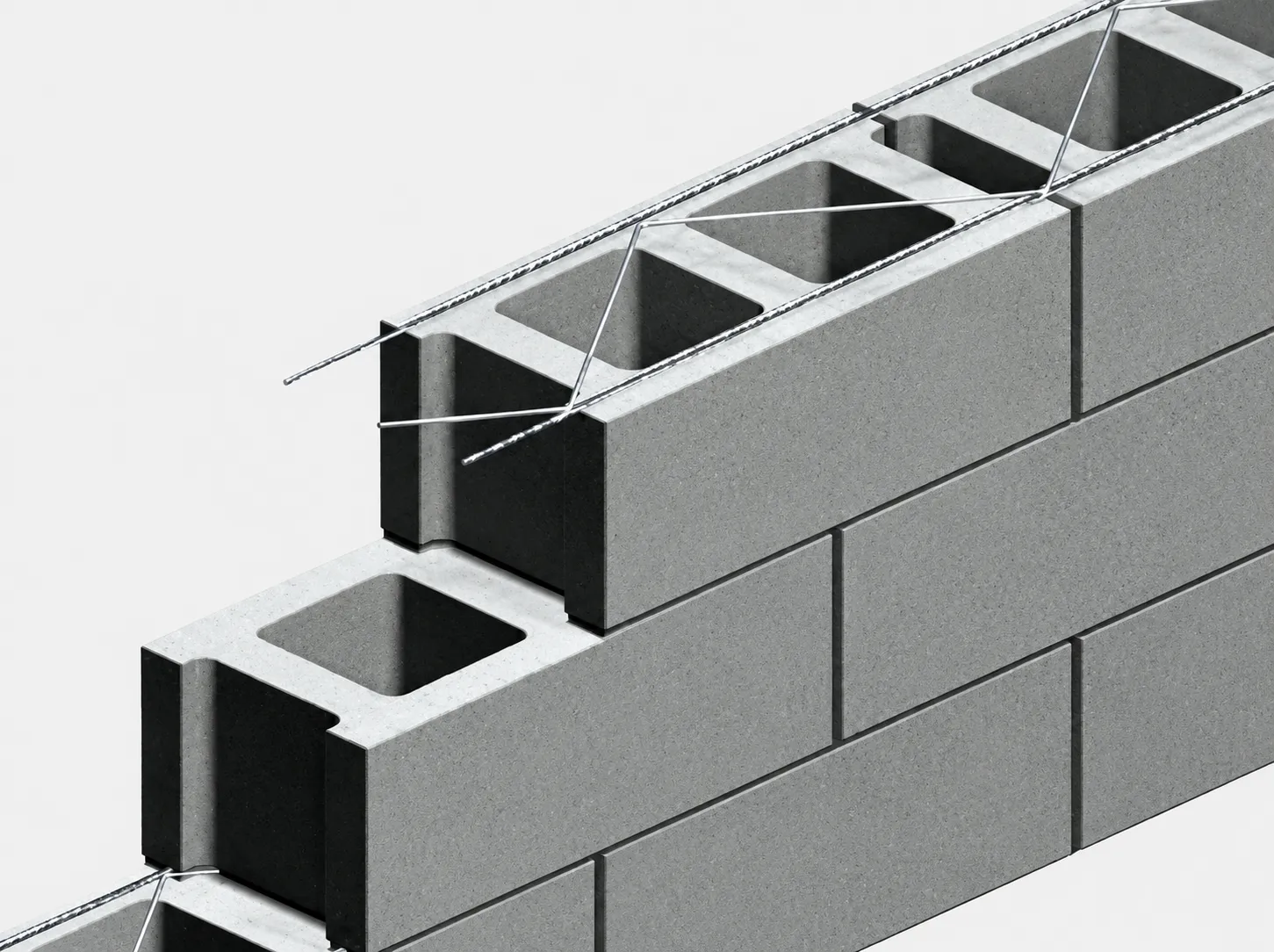

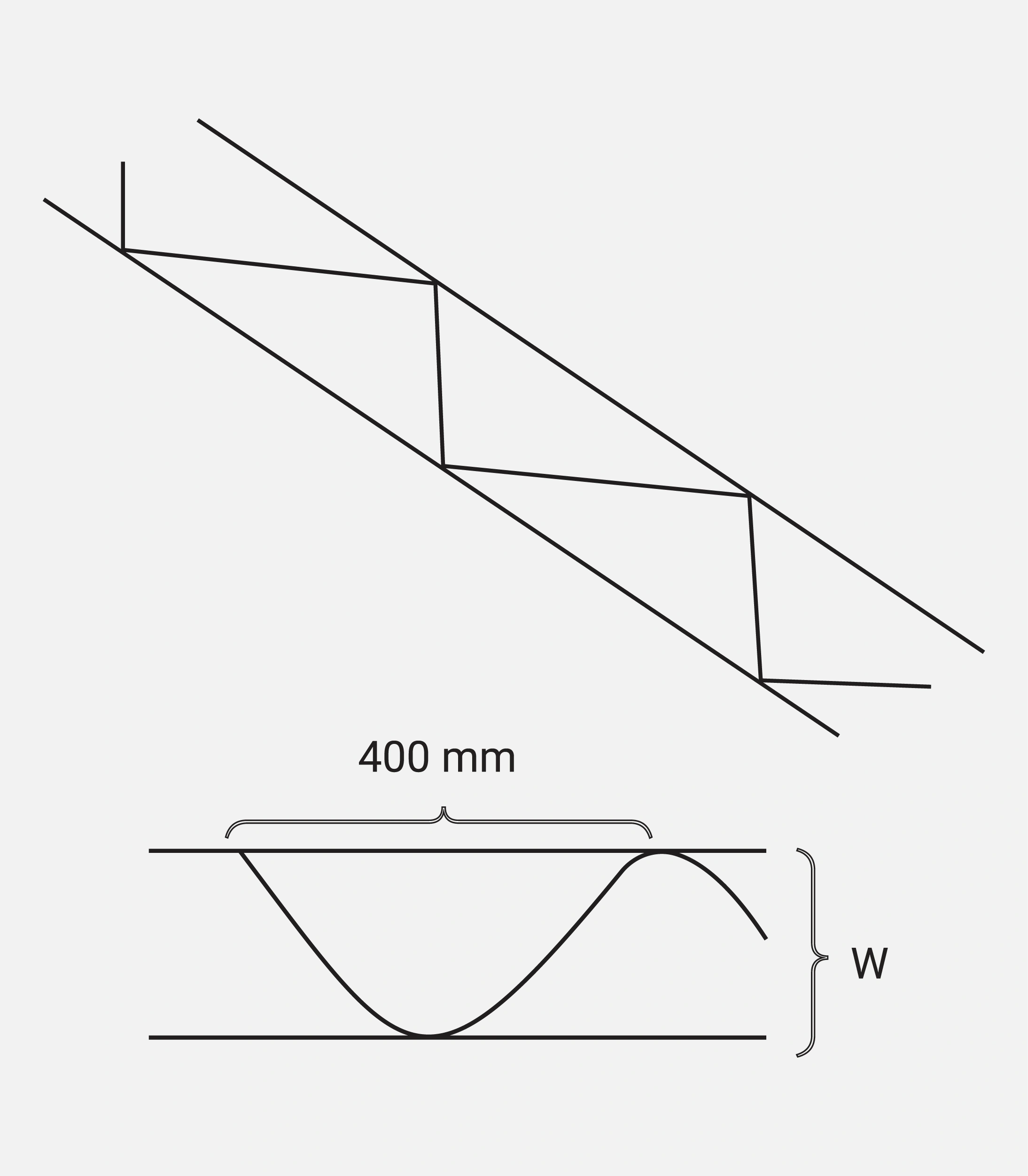

Truss type masonry wire reinforcements are designed to be embedded in the horizontal mortar joints of masonry walls. It consists of two parallel longitudinal deformed or plain side rods well connected to a continuous diagonal formed cross rod forming a truss designs with alternating welds not exceeding 800 mm (31") overall. The cross rods are electrically butt-welded to deformed side rods in a single plane.
| Galvanized Steel | Stainless Steel | Width (mm) | Length (mm) | Wire Size (mm) | Packing Pcs/Bundle |
|---|---|---|---|---|---|
| LMG050 - TR | LMS050 - TR | 50 | 3000 | 3/4/5 | 20 |
| LMG100 - TR | LMS100 - TR | 100 | 3000 | 3/4/5 | 20 |
| LMG150 - TR | LMS150 - TR | 150 | 3000 | 3/4/5 | 20 |
| LMG200 - TR | LMS200 - TR | 200 | 3000 | 3/4/5 | 20 |
| LMG250 - TR | LMS250 - TR | 250 | 3000 | 3/4/5 | 20 |
| LMG300 - TR | LMS300 - TR | 300 | 3000 | 3/4/5 | 20 |
