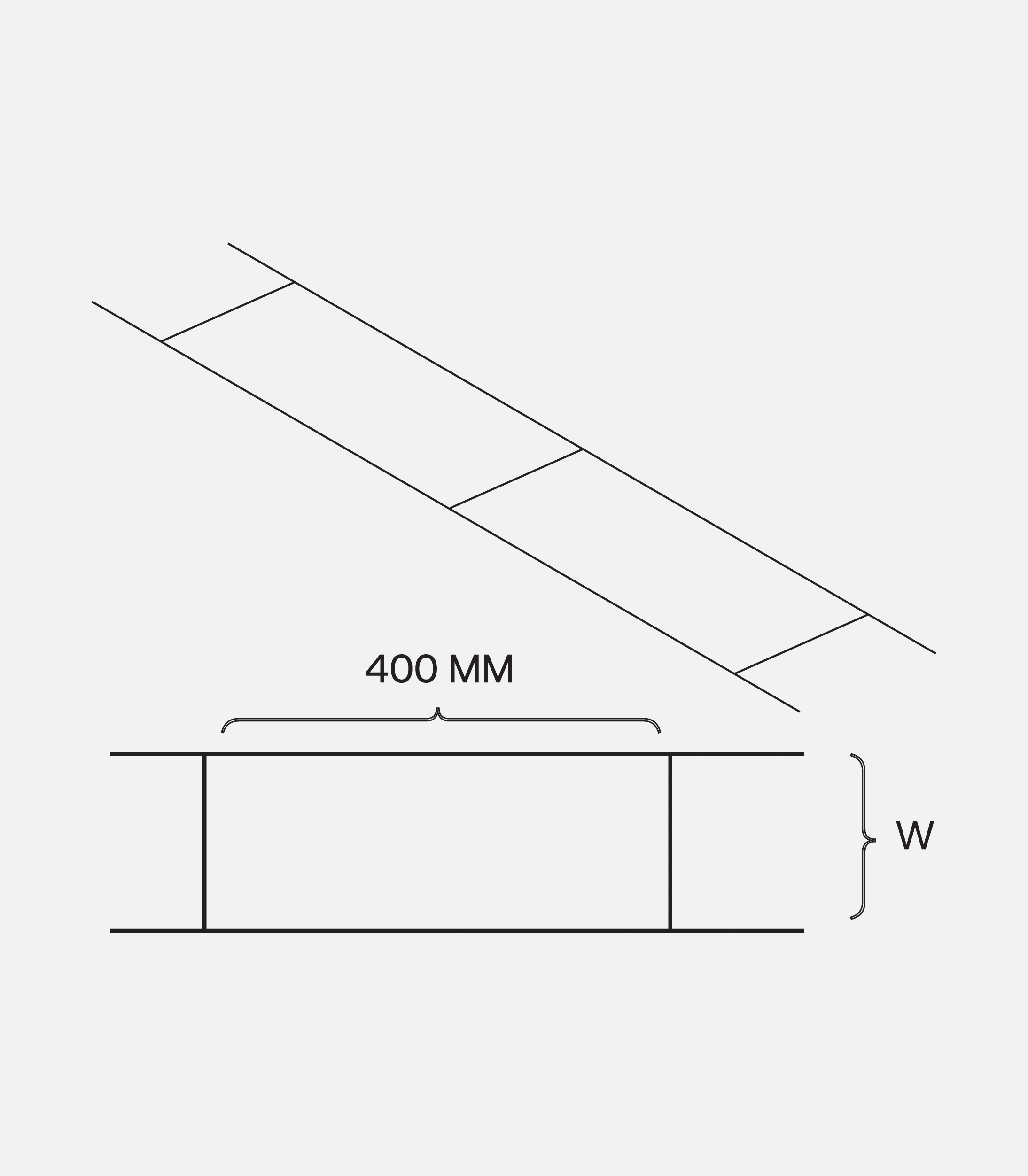

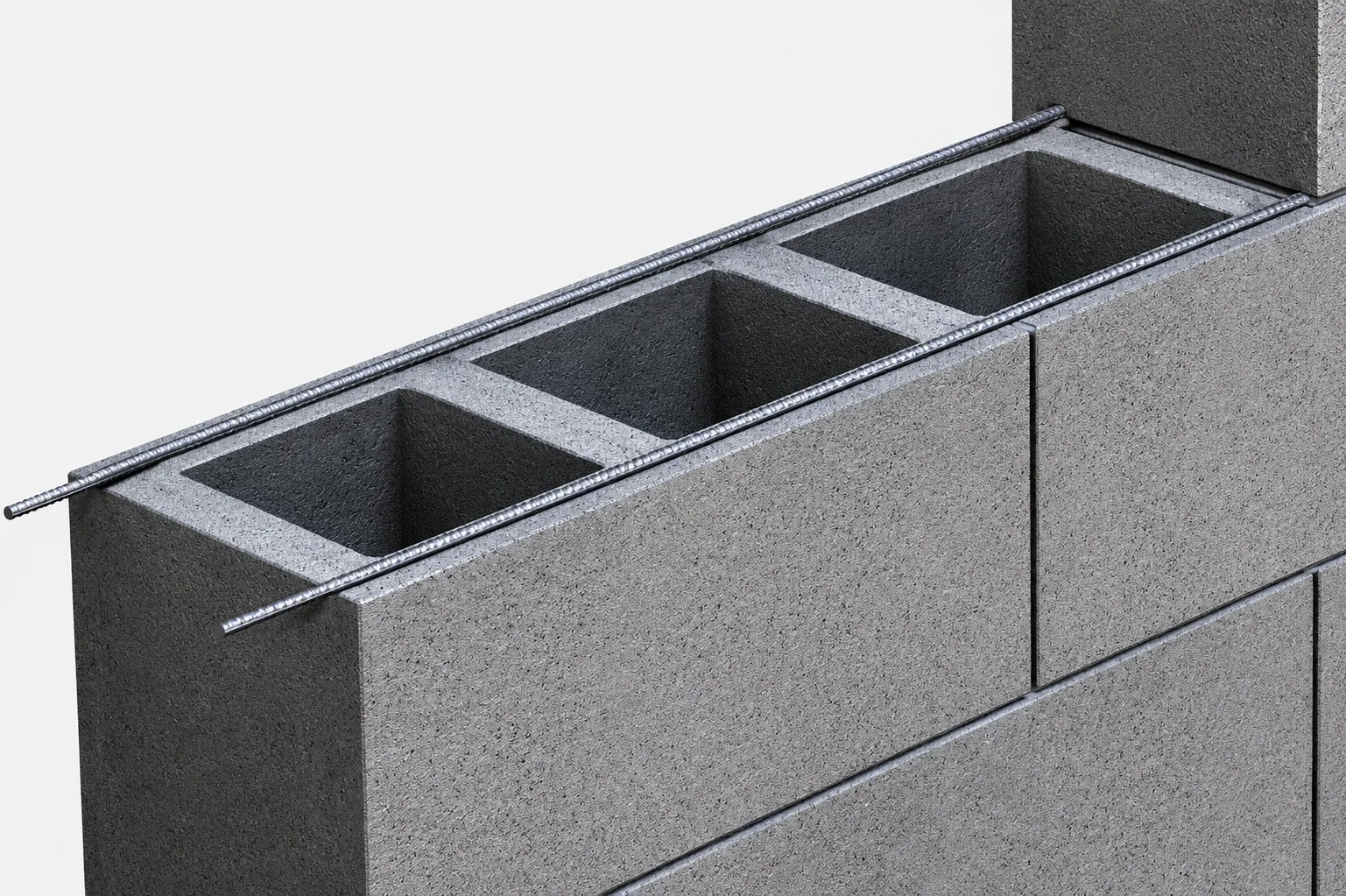

Ladder Type reinforcements are designed to be embedded in the horizontal mortar joints of masonry walls. It consists of two parallel side rods with cross rods at 16" (400mm) distances thus forming a ladder configuration. Overall measurement side to side approximately 50 mm (2") less than the nominal wall thickness to be embedded in masonry.
| Galvanized Steel | Stainless Steel | Width (mm) | Length (mm) | Wire Size (mm) | Packing Pcs/Bundle |
|---|---|---|---|---|---|
| LMG050 | LMS050 | 50 | 3000 | 3/4/5 | 20/10 |
| LMG100 | LMS100 | 100 | 3000 | 3/4/5 | 20/10 |
| LMG150 | LMS150 | 150 | 3000 | 3/4/5 | 20/10 |
| LMG200 | LMS200 | 200 | 3000 | 3/4/5 | 20/10 |
| LMG250 | LMS250 | 250 | 3000 | 3/4/5 | 20/10 |
| LMG300 | LMS300 | 300 | 3000 | 3/4/5 | 20/10 |
