METEX Aluminum U-Channel is an extruded product with sharp ninety degree inside and outside corners making this shape ideal for trim applications. The product is widely used for all types of fabrication projects where lightweight and corrosion resistance is a primary concern.
Metex Aluminum U-Channel (ALLOY 6063.T6) follows BS: 1474 for extrusion dimension tolerances with anodizing finish produced under BS EN 12373-1 2001 Clause 7 (BS 6161 Part 6) BS: 3987 Clauses 2, 3, 5, 6 having a powder coating in reference to BS: 6496 Clause 10.4, 10.5, 10.6, 10.7 & 10.8.

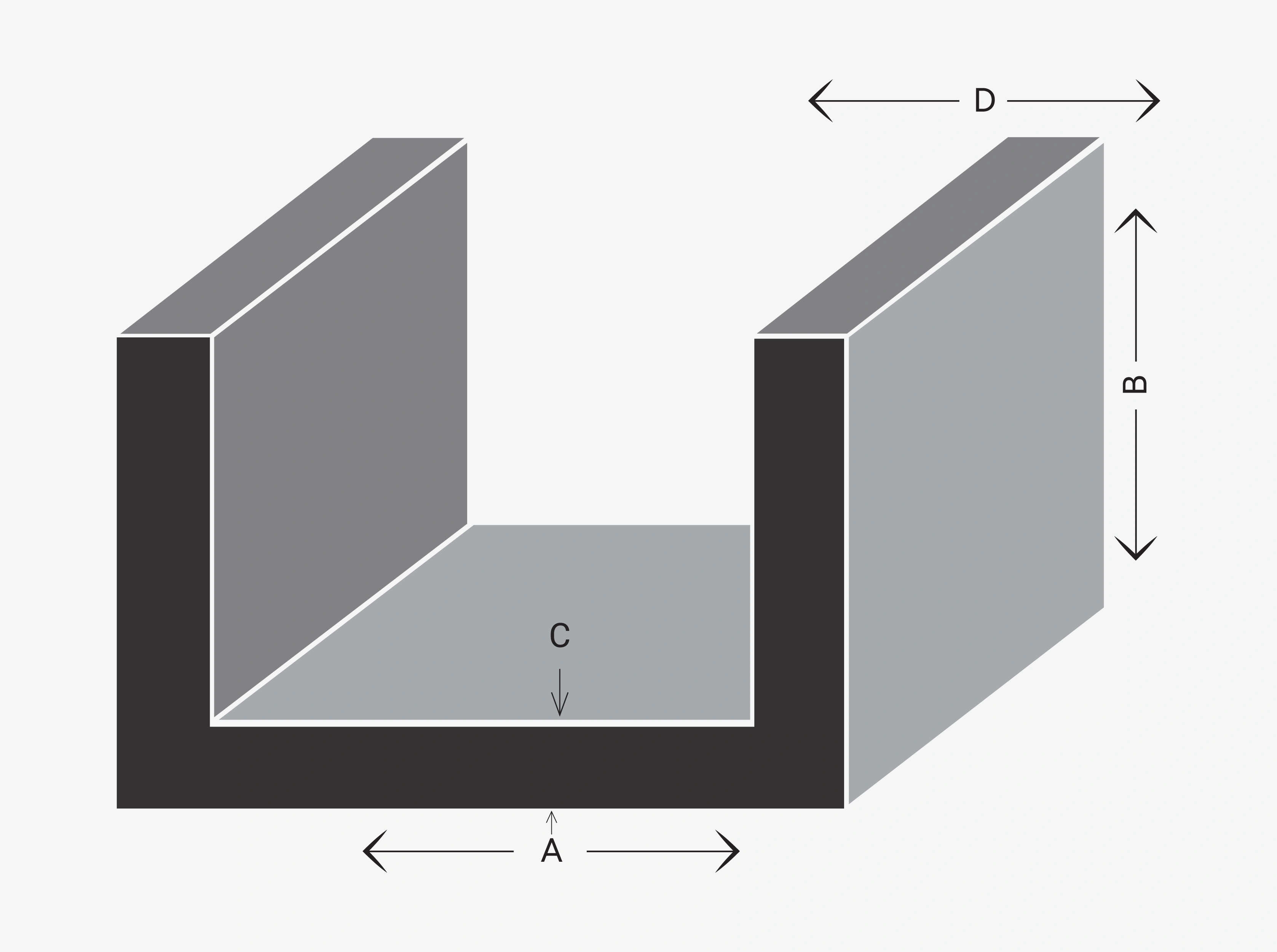

| Height(mm) | Width (mm) | Length (M) | Thickness (mm) |
|---|---|---|---|
| 10 | 10 | 6 | 1.50 - 2.0MM |
| 15 | 15 | 6 | 1.50 - 2.0MM |
| 20 | 20 | 6 | 1.50 - 2.0MM |
| 20 | 30 | 6 | 1.50 - 2.0MM |
| 25 | 25 | 6 | 1.50 - 2.0MM |
| 20 | 45 | 6 | 1.50 - 2.0MM |
*Special lengths available upon request.
